CK100A

CK 100 A

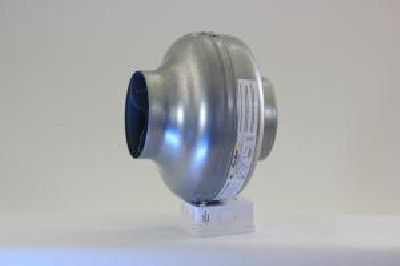

Ã–stberg centrifugal / kanalventilator Ø100mm tilslutning - 41 Watt Parameter Value Unit Voltage 230 V Voltage range 220-240 V Phase 1 ~ Frequency 50 Hz Frequency 2 60 Hz Power 41 W Power 2 47 W Current 0,18 A Current 2 0,21 A Speed 1730 r.p.m. Speed 2 1760 r.p.m. Max. temperature of transported air 60 °C Max. temperature of transported air when speed controlled 60 °C Sound pressure level at 3 m 36 dB(A) Weight 2,6 kg Enclosure class 44 IP Insulation class, motor F Capacitor 3 µF Duct connection, Ø 100 mm Max. flow 248 m³/h Max. pressure 338 Pa

CK100A

CK 100 A

Bestillingsnummer: 207

DKK 1.341

Pris i DKK
